MBI 50, MBI 70 and MBI 110 to Denmark
Three different unit models were delivered to BMS A/S, a longtime customer of MOOG who is located in Denmark. These units had working ranges from 5 m up to 11 m under the bridge.

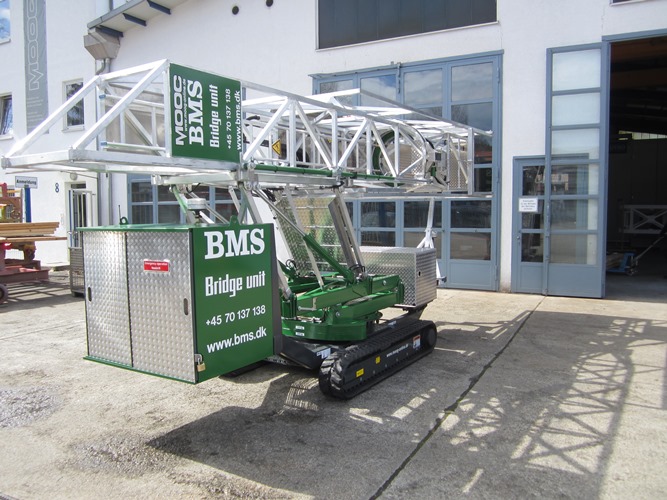

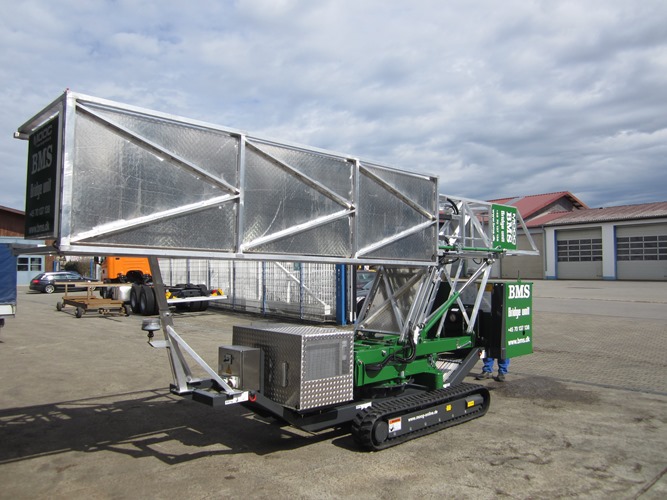

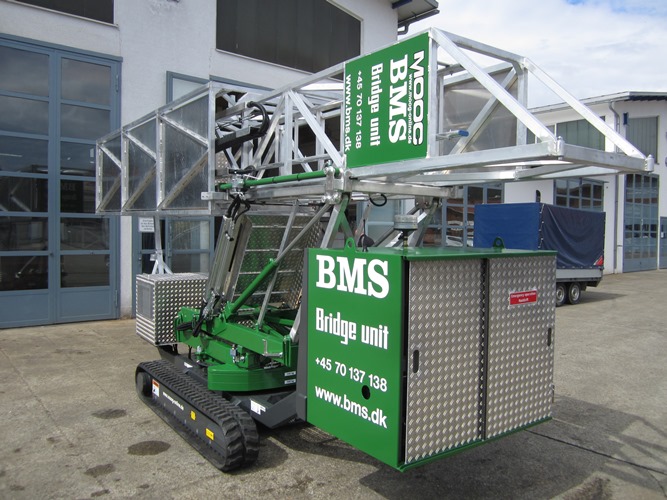

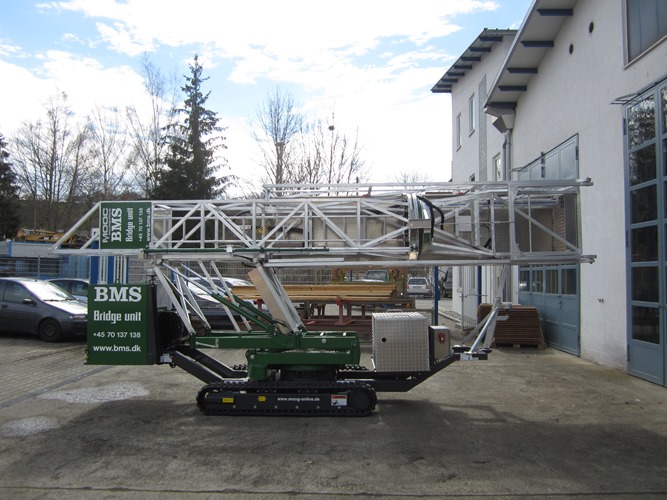

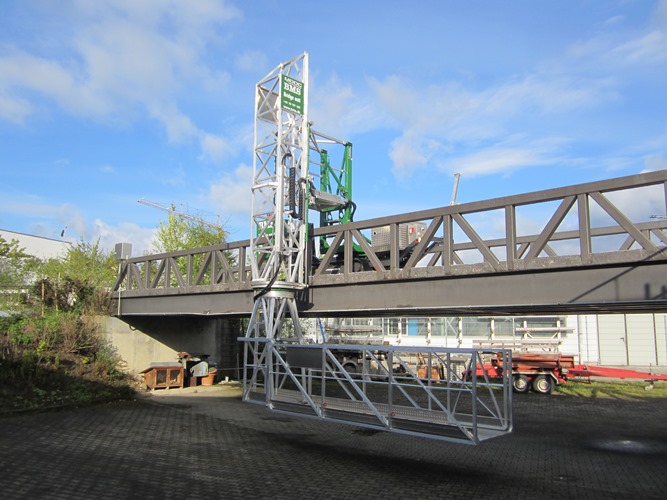

The smallest of the three delivered under-bridge units was previewed at the BAUMA exhibition in Munich in April this year and was handed over to the customer afterwards: It was a MBI 50-1/SR mounted on a crawler chassis. This unit is ideal for operation on a narrow sidewalk, pedestrian bridges or sidewalks with low load capacity restrictions. Its total weight of 3 tons is equally distributed on both crawler tracks and the transport height of nearly 2.9 m allows standard transport on a common car trailer. With a transport width of 1.6 m, a horizontal range under the bridge of 5.0 m and a lowering depth of 4.0 m this machine is very functional – but with help of the following optional equipment ordered by the customer, it is even more versatile:

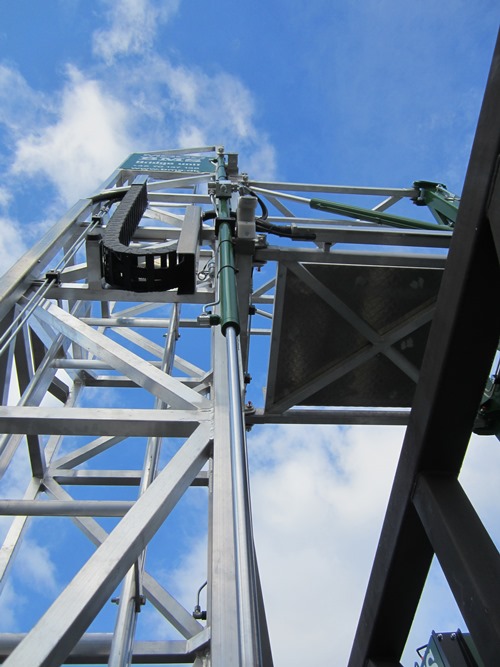

The special erection function (excavator erection) enables erection of the unit between e.g. catenaries in railway areas or on truss bridges. With this function the platform can be rotated 90° before setting up the tower and can then be placed into the bridge construction. The unit was delivered with a remote control which enables a better overview of the work area – particularly for those areas which are hard to see – and provides the user the necessary mobility by operating the unit with a wireless control. A scaffold which enables access to the top completes the optional equipment added to this unit.

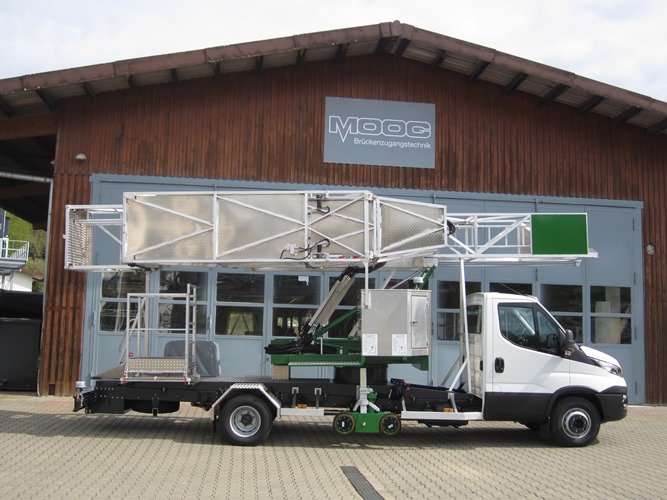

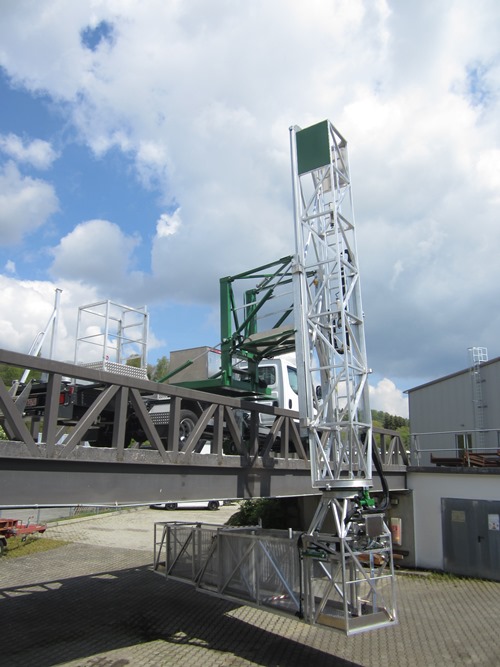

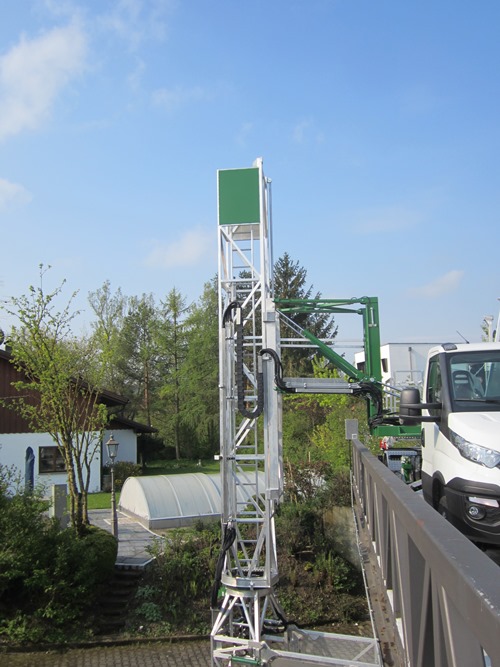

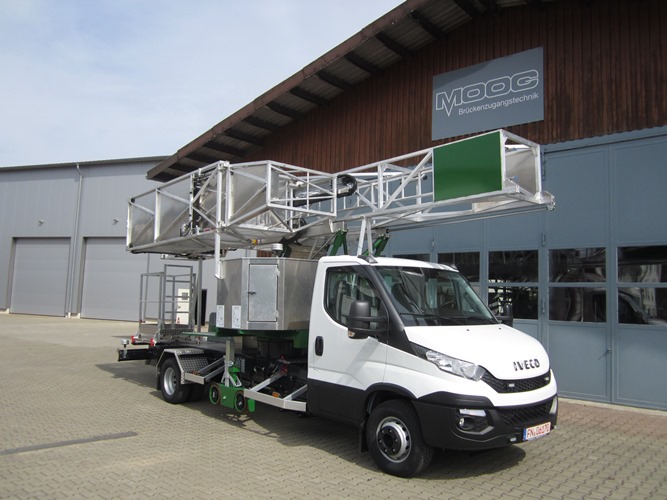

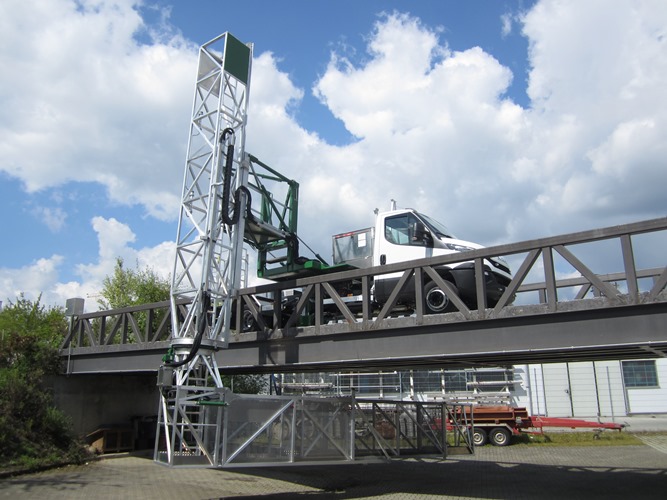

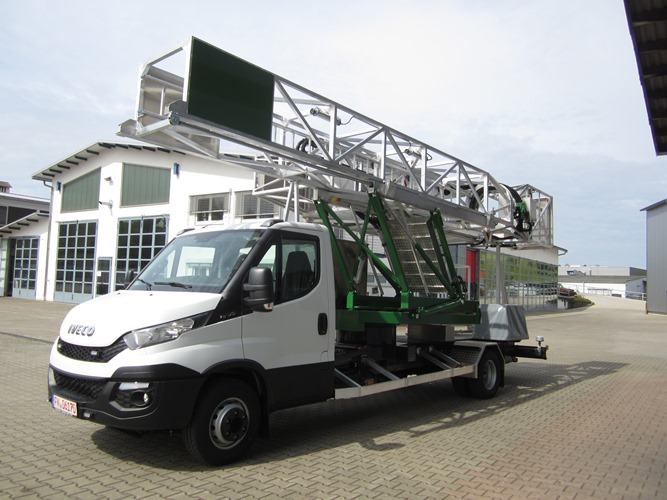

The next under-bridge unit handed over to BMS in May was a MBI 70-1/S mounted on an IVECO chassis. The machine has a maximum horizontal working range of 7.0 m under the bridge, which can be extended by a platform extension giving the unit up to 8.0 m of working range under the bridge. The overall weight is 6 tons. In keeping with the customers’ request the unit was equipped with a steel ring, which lifts the upper structure and thereby enables a wider crossing over of sound barriers. The customer also requested an additional camera system to be installed on the unit. Finally, a scaffold on the platform enables the access to e.g. box girders.

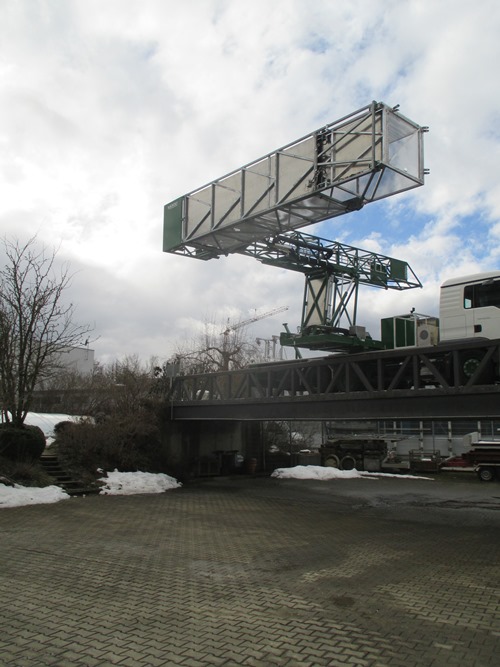

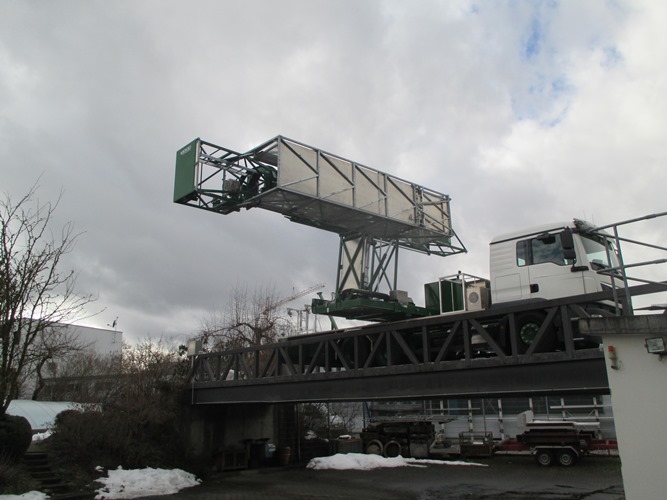

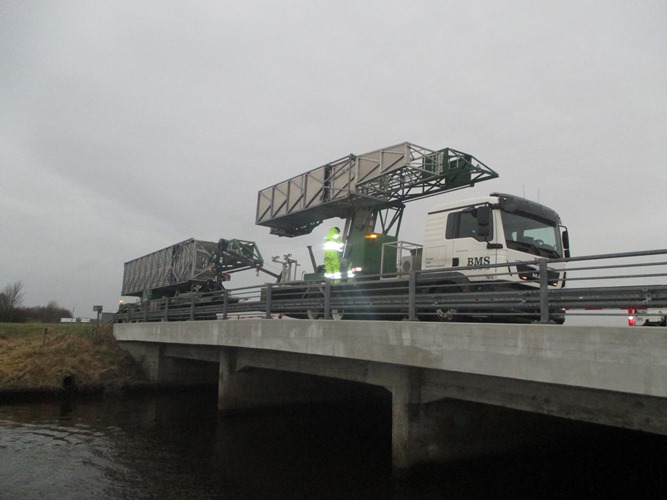

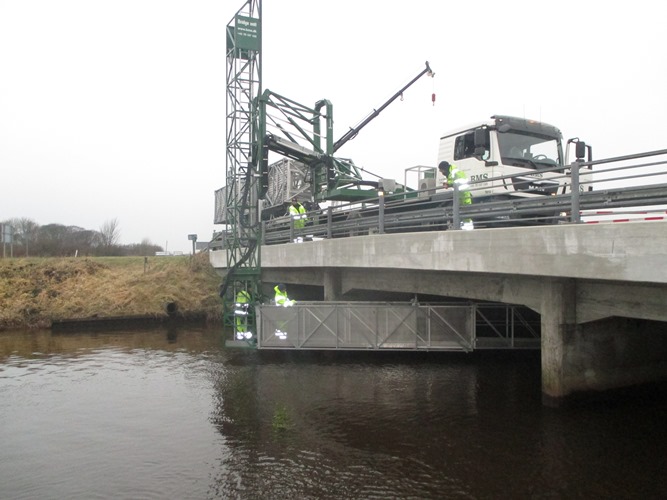

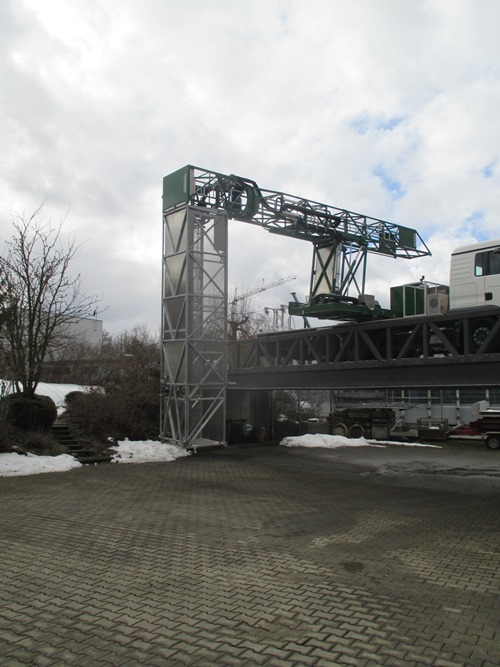

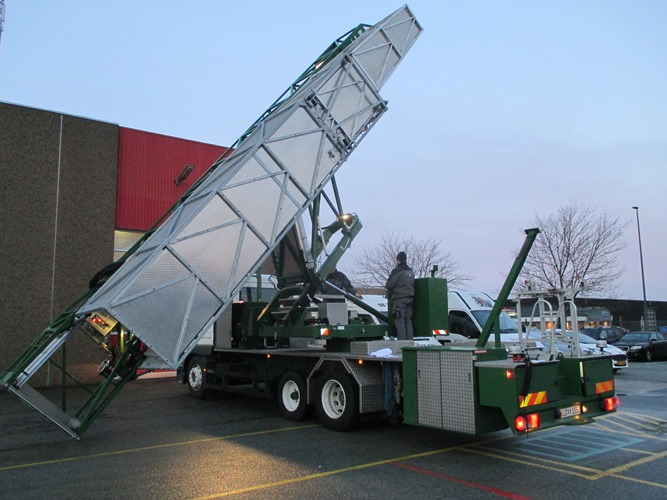

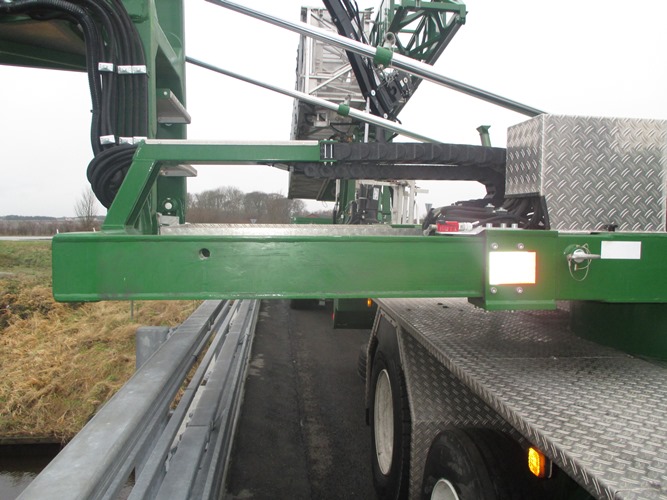

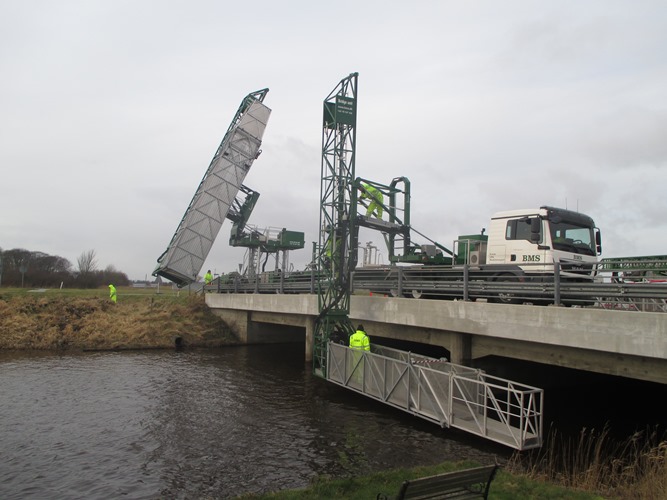

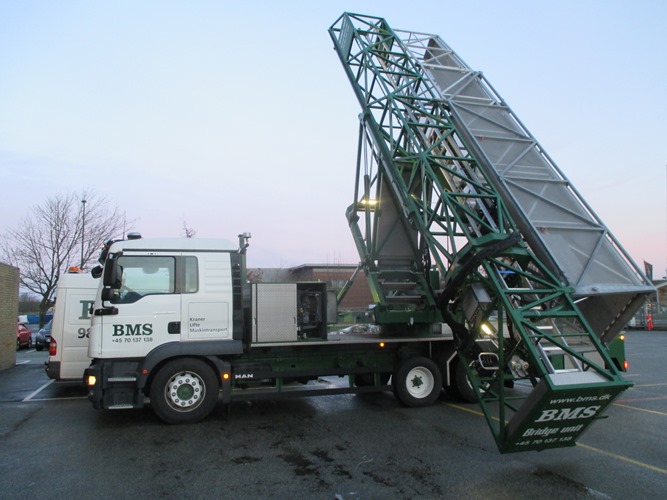

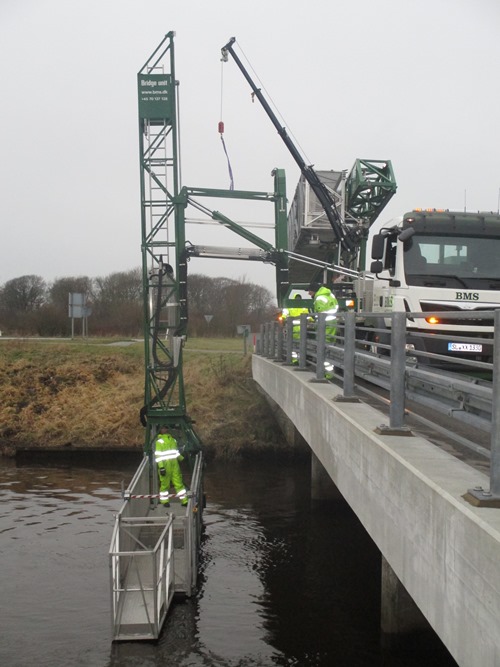

The largest of the three delivered platform units was handed over to the customer in January 2016: A MBI 110-1,2/S mounted on a MAN chassis. This machine has a maximum horizontal range of up to 13.0 m under the bridge (11.0 m standard without using the 2m platform extension ordered with this unit). It was also equipped with a steel ring for wider crossing over of sound barriers of up to 2.8 m. In addition a telescopic rotation frame was installed, which enables a wider sidewalk clearance of up to 3.3 m. The customer also requested the installation of the excavator erection and a remote control for this unit. A scaffold with 1.7 m standing height and the installation of night lighting completed the special equipment added to this unit making this machine very versatile on a job site.
All three units are currently operating in Denmark.
