MBI 160-1,7/S and MBI 210-2/S to Denmark

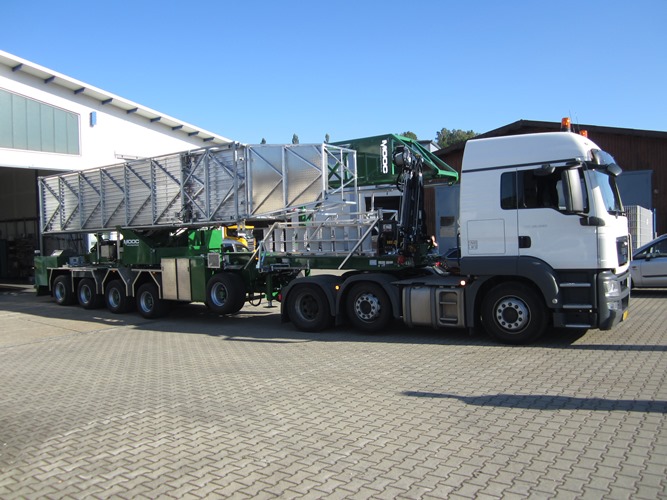

Within 2 months two big trailer mounted units were delivered to an existing customer in Denmark:
One trailer at the end of May and the other one the end of July 2015.

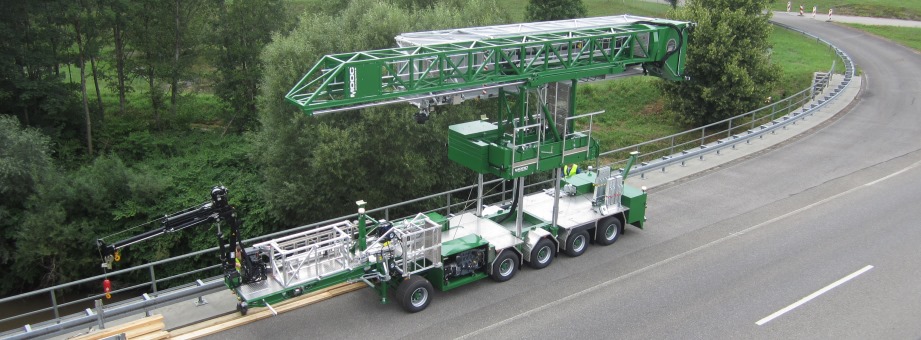

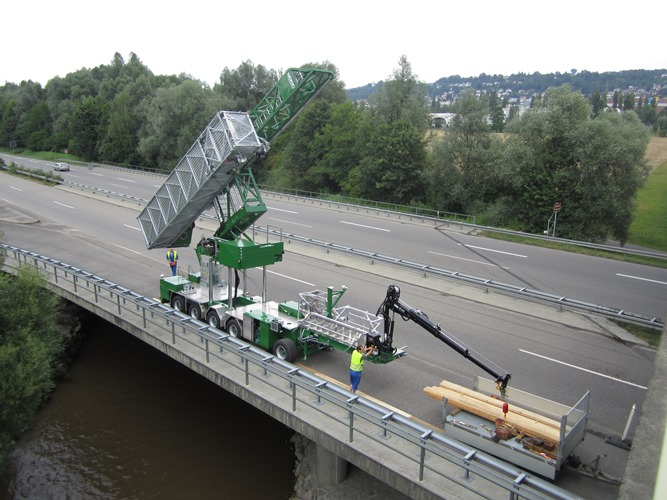

The MBI 160-1,7/S has a maximum horizontal range of 16.0 m under the bridge, which can be extended by a platform extension up to 18.0 m. The platform width is 1.7 m and its payload is 800 kg. According to the customers wishes the machine was equipped with a lifting frame which allows an over-bridging of sound barriers up to 4.5 m. In addition the rotation frame of this unit can be continuously telescoped so that the maximum over-bridging of sound barriers and crossing of walkways up to 4.2 m are possible at the same time.

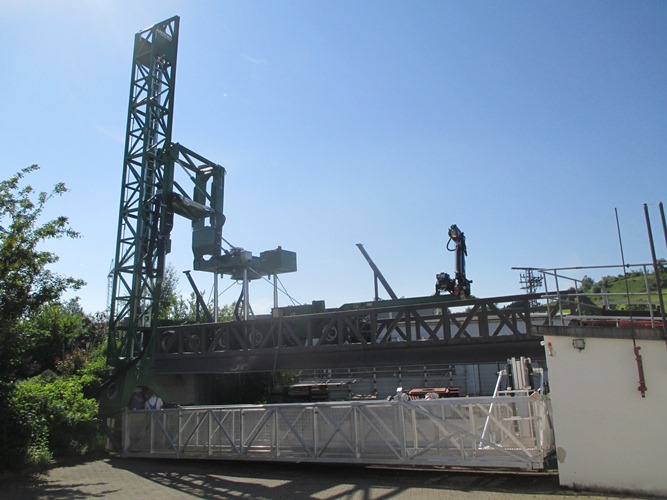

The MBI 210-2/S has a maximum horizontal range of 21.0 m under the bridge. The maximum horizontal range of this unit can also be extended by using a 2m platform extension. The platform width is 2.0 m and its payload is 1,000 kg. This machine is also equipped with a lifting frame which increases the over-bridging of sound barriers from 3.7m up to 5.5m.

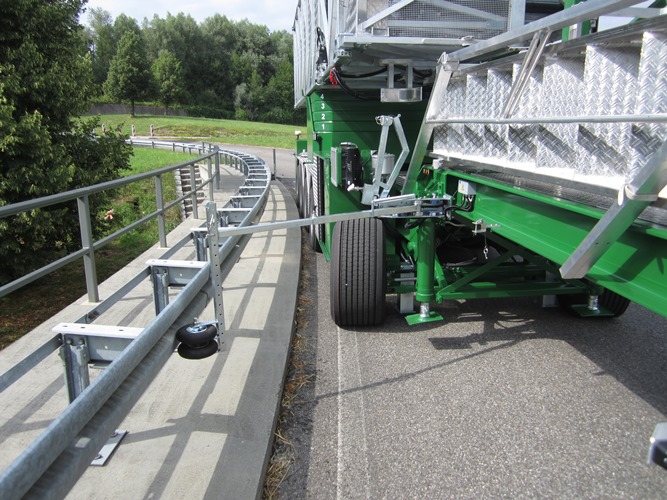

Regarding the optional equipment, the customer decided to order an Alp-lift for each machine with a 6.0 m stand height, 2 scaffoldings with 2.0 m stand height each, night lights and an automatic driving with an ultrasonic system which allows the Under-Bridge Unit to be operated and moved by only one person located on the platform.
As per the customer’s request other additional equipment was supplied which can be used for both machines:

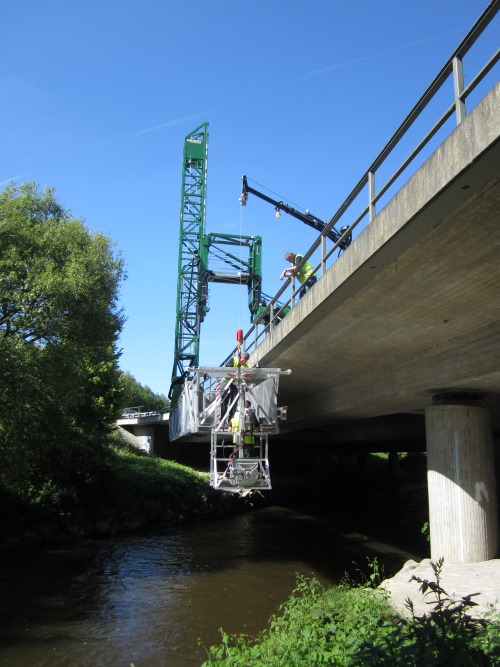

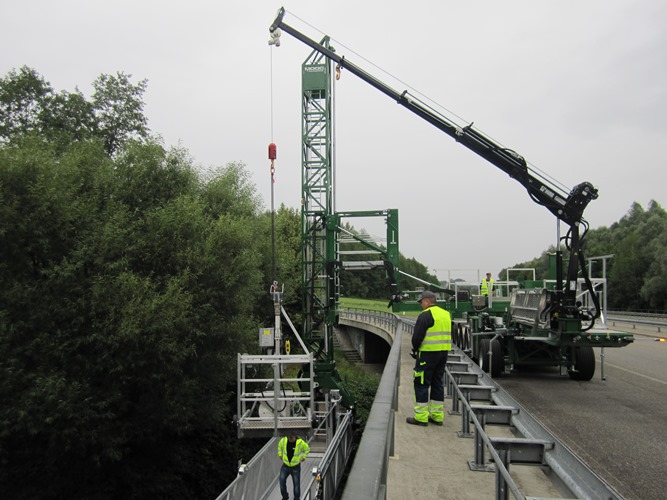

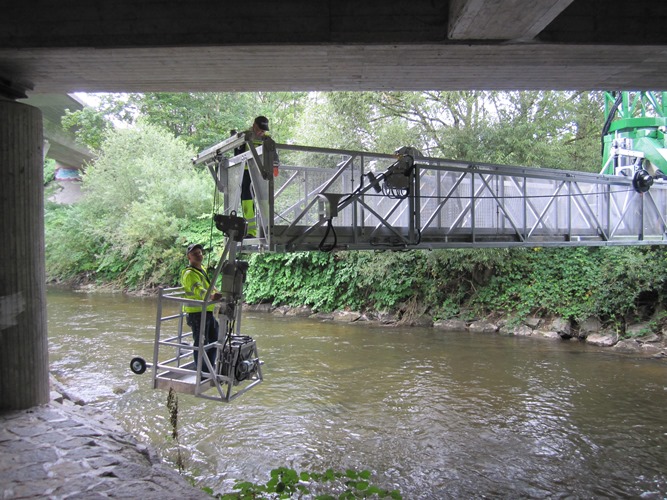

A pier inspection device, with a lowering depth of up to 80.0 m. This device can be installed as required on either of the above mentioned Under-Bridge Inspection Units, as both machines came prepared for this pier inspection basket.
Both of these Under-Bridge Units are already operating in Denmark.
